HOW IT WORKS

HOW IT WORKS

A lithium pack built to dump current fast. Clamp it on, press the button, and it delivers 1,000–4,000 A of peak current within seconds — enough to crank the engine without a second car or a tow truck.

See the specsTalk to us

Scroll to see the full process

OUR AREAS OF APPLICATION

Where it works

Any 12 V / 24 V system, petrol or diesel — pick the peak current by engine size

STEP BY STEP

Emergency Jump Starters

PEACE OF MIND IN THE PALM OF YOUR HAND.

Below 30% charge, it may not start your engine

This unit is designed for jump starting 12V / 24V cars. Each type of start valve has different application ranges. Do not attempt to jump start vehicles with a higher battery voltage, or different voltage, or higher displacement.

If the vehicle isn't started immediately, please wait for 1 minute to allow the jump starter to cool down before next attempt. Do not try to restart the vehicle after three consecutive attempts as this may damage the unit. Check your vehicle for other possible reasons why it can't be restarted.

If your vehicle battery is dead or its battery voltage is under 2V, you need to use force start mode.

  1. 01

    Power on, plug in

    Switch on your jump starter and make sure battery balance is over 30%. Insert the jump-start clamps into the port correctly and firmly.

  2. 02

    Red to +, black to −

    Connect the jump-start clamps to the car battery terminals correctly (red to positive (+), black to negative (-)).

  3. 03

    Green light, then crank

    Start the engine in 30s once the indicator light turns green.

  4. 04

    Unplug first, then remove

    Remove the plug from the battery pack and remove the clamps from the car battery.

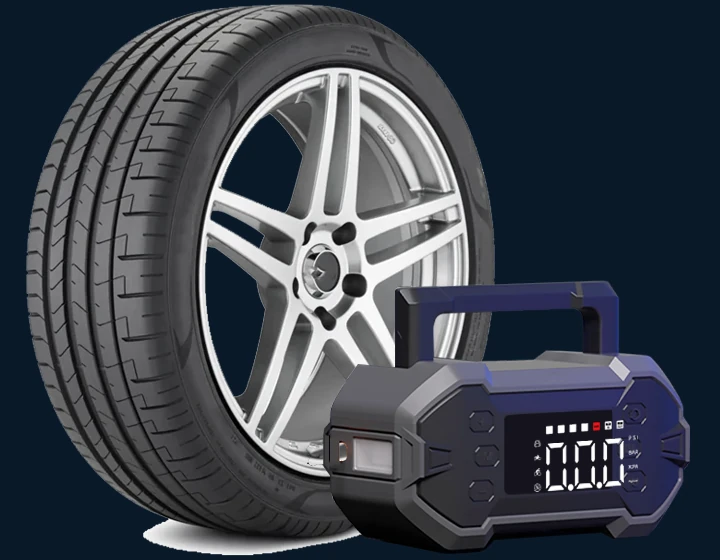

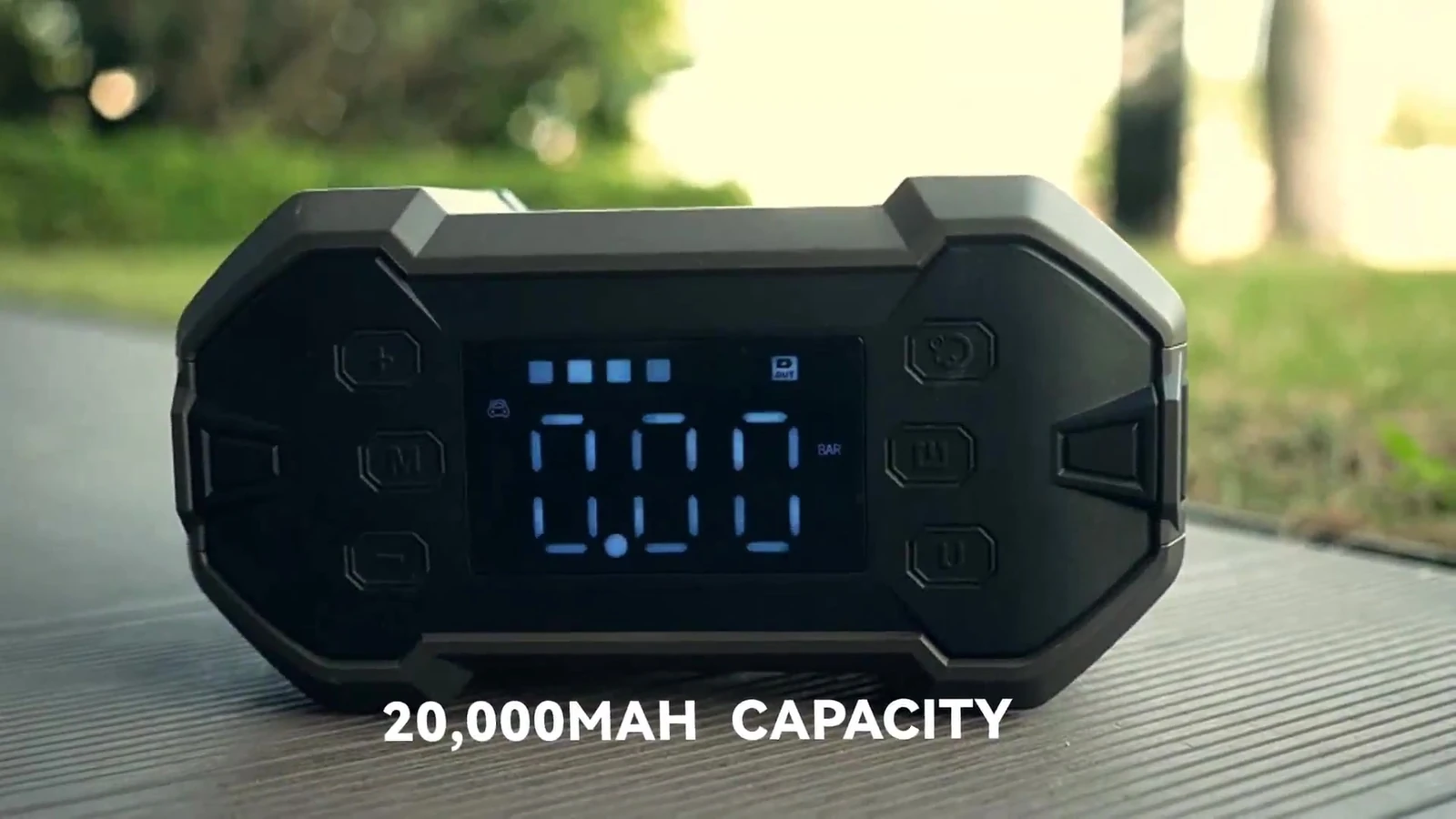

BUILT-IN COMPRESSOR

INFLATE TIRES

POWERFUL AIR COMPRESSOR

All items that are normally filled by mouth need to be filled in manual mode. Turn off the air compressor when the desired firmness is reached, as you would by mouth.

  • 5–7 MIN to fill a flat tyre
  • 3–150 PSI adjustable
  • 60 PSICarAUTO STOP
  • 36 PSIMotorcycleAUTO STOP
  • 36 PSIBikeAUTO STOP
  • 36 PSIBasketballAUTO STOP
  • 10–20 PSIBallAUTO STOP
  • 2.5 PSIAir bedAUTO STOP
  1. 01

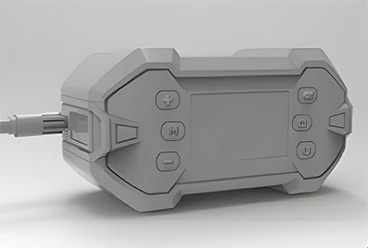

    Connect the air tube

    Connect the air tube to the jump starter.

  2. 02

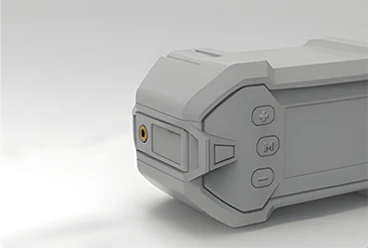

    Press M to choose mode

    Press M key to choose mode.

  3. 03

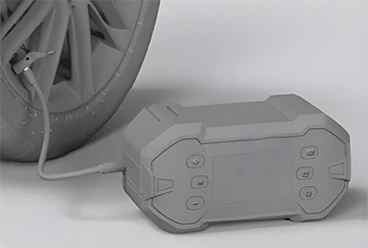

    Press M to start

    Press "M" to start inflation.

PRESSURE SETTING

PRESSURE SETTING

Press the "M"button to choose car,motorcycle,bike or ball icon on the digital screen as your desired mode

TUTORIALS

More use of video

Dive into our product's features and functionalities with our detailed tutorial videos. Whether you're a beginner or an advanced user, these videos offer step-by-step guidance to help you get the most out of our product.
